An unmanned aircraft system traffic management (UTM) system locates drones using the mobile telecommunications network and incorporates them into an air situation display. The technology has been developed especially for drones flown beyond their operators' visual line of sight – for example, for control flights along pipelines, or for drones used in agriculture or in search and rescue missions.
Mobile data create an air situation display

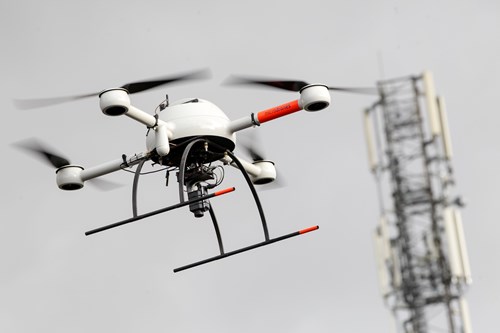

Unmanned aircraft systems transmit their position data to the UTM system over the mobile network. For this, they are equipped with an LTE modem, a GPS module and a mobile transmitter. The UTM system creates an air situation display from these position data. The display shows any surrounding traffic and warns of conflicts. Prohibited areas, around airports for example, can also be included in the system.
The system can detect unmanned aircraft systems up to a height of 100 metres. An advantage of using telecommunication is that the mobile network provides complete geographical coverage.
The UTM system is based on the DFS multi-sensor tracker Phoenix, which was developed by DFS and is in use to display radar data for air traffic control. DFS adapted the tracker to correctly display the movement patterns of drones, which are significantly different to those of conventional aircraft.
Infrastructure for the lowest airspace
The system can be linked to existing air traffic control systems and warn air traffic controllers of conflicts. The system's capabilities go beyond simply locating unmanned aircraft systems, however. Chart material, prohibited areas and meteorological information are also integrated.
Data from detection systems can be added, too, meaning the system could be used as the basis for counteracting intrusive drones.
DFS and Deutsche Telekom set up the research project in 2016 and have been working on a solution for the safe and fair integration of drones in airspace since then.
